Wednesday, March 14, 2007

How to open the Western Digital My Book 500GB

Do not be stupid and leave the unit plugged in or plug it in during disassembly. And you are about to void any warranty you may have.

Model: WD5000C032

Step one

Identify the corner screw that is painted black. It is located by the lock hole. Scrape it clean and unscrew it. The two clam shells that form the My Book are very snug.


Step two

Put the My Book up on its end, the long rubber feet down. Locate the locking tab (See step four). It will be visible through the grille. Push locking tab down with screw driver (pink) and insert another (red) to torque the two clam shells apart. Be gentle, the plastic is soft and chances are it will get marred. Torque the clam shells apart just enough to prevent the tab from locking.
Step Three

Flip it over and do the same. But just enough to get the locking tab to not lock. Flip it over, and continue to repeat steps two and three until you can pry the clam shells apart with your fingers or a soft instrument.

Step Four

Note the locking tabs; it will help you visualize what is to be done in steps two and three. Step the outer clamshell aside and lay the hard drive caddy flat. Observe the white transparent LED button that is used to power the My Book on and off.

Step Five

Do not attempt to remove the hard drive. There is much work yet to be done. Notice how the drive screws are inaccessible.

Step Six

Unscrew the three screws that hold the LED PCB in place.


Step Seven

Remove the LED PCB. It is connected by pins, so wiggle it gently until it disconnects.

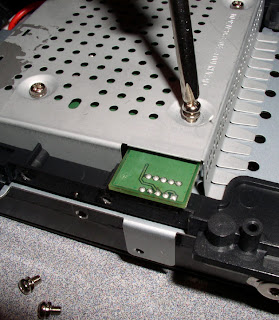

Step Eight

Now this is the second hard part. The first was opening the clamshell I’m sure you will agree. The power supply PCB on the bottom of the drive caddy must be loosened so that the LED PCB connector can clear the plastic clamshell. Loosen the two screws nearest the LED connector. You may have to remove some aluminum tape that holds the HDD connectors in place.

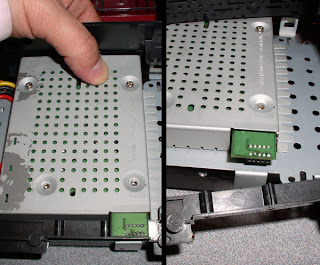

Step Nine

It can’t be explained. Just keep manipulating the HDD caddy until it comes out of the plastic clamshell.
Step Ten

Now remove the other two screws from the power supply cage. This is necessary so that the HDD screws can be removed without damaging the sheet metal that forms the power connector housing.

Step Ten

Now remove the other two screws from the power supply cage. This is necessary so that the HDD screws can be removed without damaging the sheet metal that forms the power connector housing.

Step Twelve

You should screw the power supply cage back on at this point: the posts that are inside it are going to float around and impact components and traces as the other three HDD screws are removed.

Step Thirteen

Remove the HDD cables.

Step Fourteen

The HDD may be removed by wiggling it free of the rubber shock mounts to which it is attached.

Congratulations. Enjoy replacing the drive.
